miRPipe: Beginner and Advanced User Guide

An illustrated guide to the purpose, workflow, use, interpretation, applications, benchmarking, and limitations of miRPipe.

Contents

• Start here: what miRPipe does
• Why small-RNA analysis is difficult
• The complete workflow
• Beginner quick start
• Inputs and outputs
• Advanced-user guide
• Scientific significance
• Applications
• Published benchmark
• Comparison with other pipelines
• Limitations and responsible interpretation
• Troubleshooting
• Reproducibility checklist
• Citation

Start here: what miRPipe does

miRPipe is an end-to-end workflow for analyzing small-RNA sequencing data. It was designed to identify and quantify:

• known microRNAs (miRNAs);
• candidate novel miRNAs;
• miRNA paralogues and other candidates that share functional seed sequences;
• reverse-complement sequences that could otherwise be misclassified; and
• previously annotated piwi-interacting RNAs (piRNAs).

For a cohort containing two biological groups, miRPipe can also build count matrices and run differential-expression analysis with DESeq2. The published implementation is delivered as an interactive Jupyter notebook inside a Docker image.

In plain language, miRPipe turns raw sequencing reads into annotated small-RNA counts and, when the study design permits, lists of small RNAs whose abundance differs between groups.

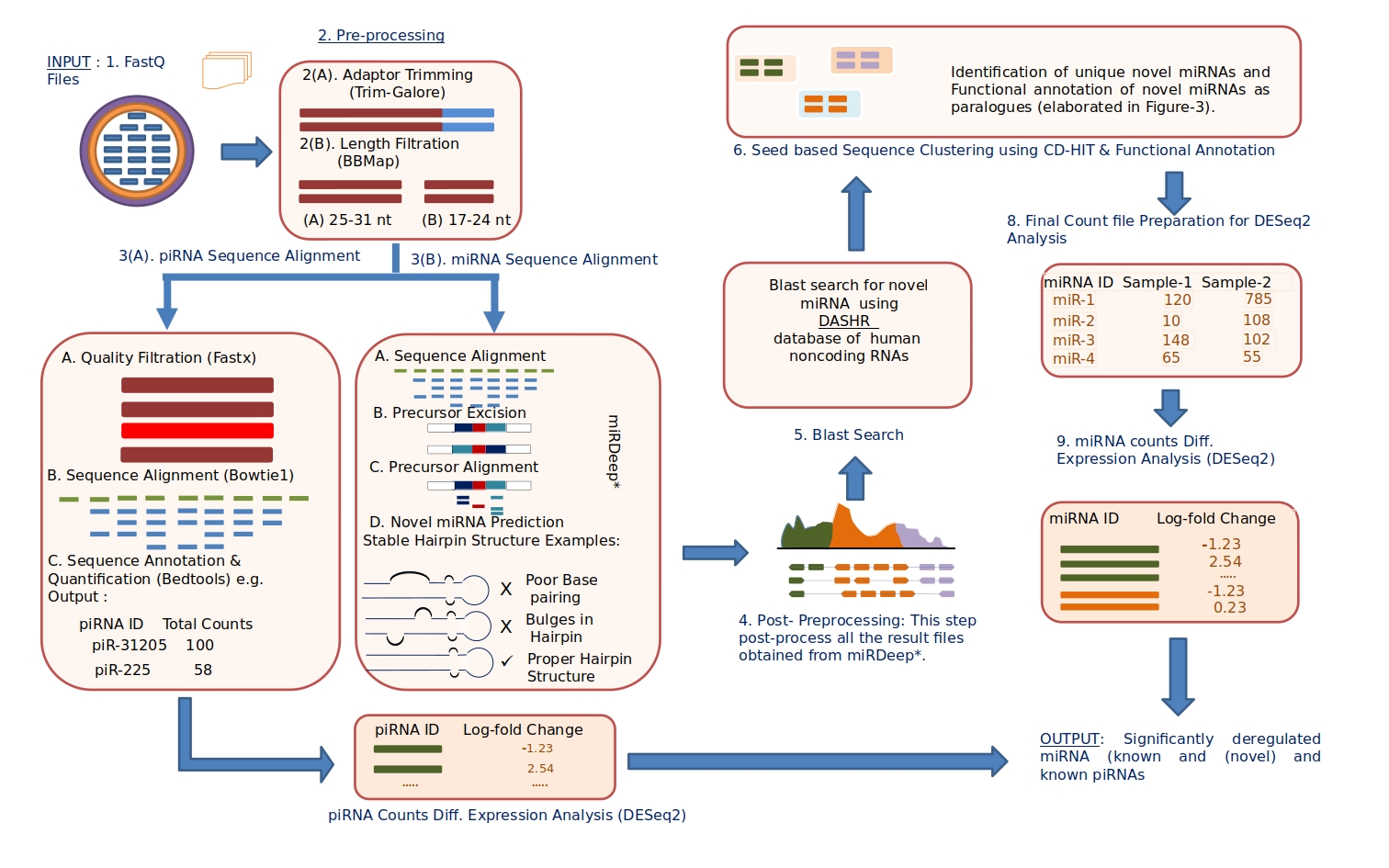

Figure: miRPipe workflow supplied in the project repository. See the peer-reviewed article for the formal method description.

Who should use this guide?

Why small-RNA analysis is difficult

Small RNAs are short, abundant, and often highly similar. A few nucleotides can determine whether two reads represent the same molecule, an isomiR, a paralogue, a sequencing artifact, or a different RNA class. Reads may also map to more than one genomic locus.

The following concepts are central to miRPipe:

miRPipe addresses these issues by combining alignment, database searches, sequence clustering, genomic-position checks, count aggregation, and statistical analysis.

The complete workflow

flowchart TD
    A["FASTQ files + sample sheet"] --> B["QC and adapter trimming"]
    B --> C{"Read length"}
    C -->|"17–24 nt"| D["miRDeep* miRNA branch"]
    C -->|"25–31 nt intended"| E["Bowtie + piRNAdb branch"]
    D --> F["DASHR re-annotation"]
    F --> G["Seed/xseed clustering"]
    E --> H["piRNA count matrix"]
    G --> I["miRNA count matrix"]
    H --> J["DESeq2"]
    I --> J
    J --> K["Annotated and differential-expression outputs"]

Stage-by-stage explanation

Beginner quick start

1. Confirm that your experiment is appropriate

The published implementation is most directly suited to human, single-end small-RNA FASTQ data. For differential expression, prepare biological replicates in two groups. Do not treat technical replicates as independent biological samples.

Before running the pipeline, record:

• library-preparation kit and adapter sequence;
• sequencing orientation and quality encoding;
• reference genome build (hg19 or hg38);
• miRNA annotation version;
• biological condition for each sample; and
• any known batch, sex, age, or clinical covariates.

The supplied DESeq2 script does not model those additional covariates. If they matter, export the count matrix and run a customized DESeq2 design outside the notebook.

2. Prepare the data directory

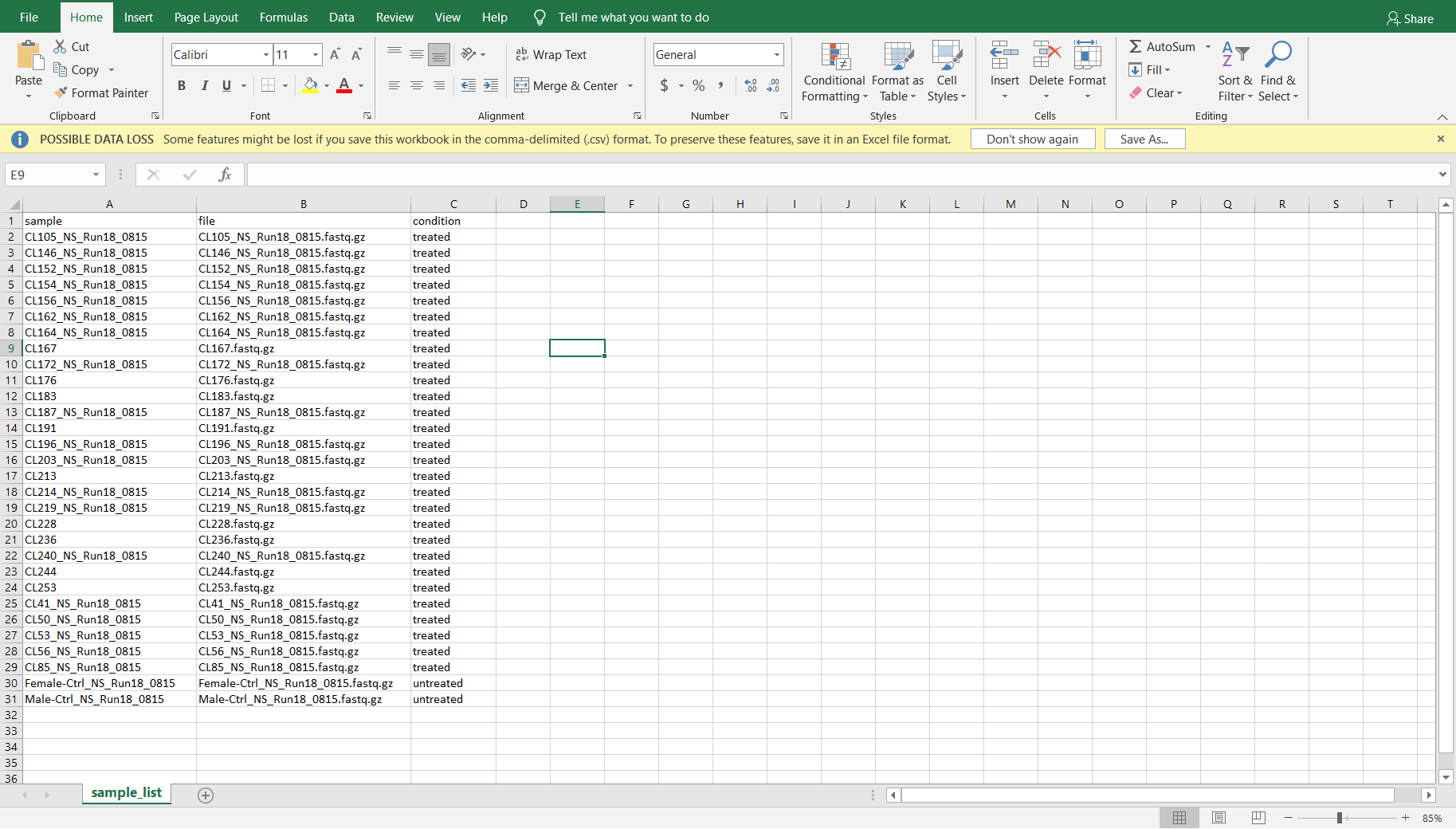

Place the FASTQ files and sample_list.csv in one directory. A minimal sample sheet is:

sample,file,condition
Sample_A,Sample_A.fastq.gz,treated
Sample_B,Sample_B.fastq.gz,treated
Sample_C,Sample_C.fastq.gz,untreated
Sample_D,Sample_D.fastq.gz,untreated

For the current notebook and R script:

• use the exact column names shown above;
• keep sample IDs unique;
• use the exact group values treated and untreated;
• verify that every listed file exists; and
• sort sample rows alphanumerically, because the published implementation relies on the sample order matching the final count-matrix columns.

Recommended layout:

mirpipe-run/
└── data/
    ├── sample_list.csv
    ├── Sample_A.fastq.gz
    ├── Sample_B.fastq.gz
    ├── Sample_C.fastq.gz
    └── Sample_D.fastq.gz

3. Pull and run the Docker image

docker pull docker.io/vivekruhela/mirpipe

docker run --rm \
  -p 127.0.0.1:8880:8888 \
  -e PASSWORD='replace-with-a-strong-local-password' \
  -e USE_HTTP=1 \
  -v "$(pwd)/data:/miRPipe/data" \
  docker.io/vivekruhela/mirpipe

Open http://localhost:8880/mirpipe and enter the password chosen in the command. Open the repository’s actual pipeline notebook, mirpipe_pipeline.ipynb.

The 127.0.0.1 binding keeps the unencrypted Jupyter service local to the computer. On a remote Linux server, use an SSH tunnel rather than exposing port 8880 publicly:

ssh -L 8880:127.0.0.1:8880 username@server.example.edu

Then open the same localhost address on your own computer.

Security note: never reuse an institutional, GitHub, Docker Hub, or email password as the notebook password. Do not expose this HTTP notebook directly to the internet.

4. Run the notebook carefully

Run one section at a time and inspect its output before continuing.

1. Confirm the printed home, data, tools, and reference directories.
2. Review FastQC/MultiQC reports.
3. Select the correct adapter option.
4. Select a compatible genome-build and miRBase combination.
5. Run the miRNA and/or piRNA branch.
6. Check the number of known and candidate novel features.
7. Review re-annotation and seed-clustering results.
8. Confirm the count-matrix column order against sample_list.csv.
9. Run DESeq2 only after those checks pass.
10. Copy final results and all run metadata to a permanent project directory.

Inputs and outputs

Required inputs

Five final output files documented in the repository

Also retain the QC reports, complete DESeq2 result tables, normalized counts, software versions, logs, and intermediate annotation tables. A significant-only table is insufficient for reproducible review.

Advanced-user guide

Read-length boundary

The paper describes 17–24 nt reads for miRNA analysis and 25–31 nt reads for piRNA analysis. The current scripts/fastq_split.sh, however, sets minlength=24 and maxlength=31 for the piRNA branch. That creates a 24-nt overlap between the two branches.

Before a new study, decide whether to reproduce the published intention or the repository implementation. Record the decision and benchmark it because a one-nucleotide boundary can change RNA-class assignment.

piRNA mapping behavior

The supplied piRNA script uses Bowtie with exact matching (-v 0), disables reverse-complement alignment (--norc), and quantifies overlap with piRNAdb annotations. These choices are stringent. They can reduce false-positive mappings but can also miss legitimate reads containing sequencing errors, biological variation, or opposite-strand mappings.

For a new production study, document:

• unique versus multi-mapping policy;
• allowed mismatches;
• strand rule;
• annotation database and release;
• genome build; and
• how overlapping annotations are counted.

miRNA alignment and re-annotation

miRDeep* performs the initial known/novel miRNA classification. miRPipe then checks candidate novel sequences against DASHR. If a sequence or its reverse complement matches a known miRNA at a compatible locus, its label and counts can be reassigned.

This is one of the method’s distinctive ideas, but the notebook automates a public website through an older Firefox/Splinter/geckodriver setup. For stable modern operation, replace browser automation with a versioned, locally downloadable annotation resource or a documented API if licensing and availability permit.

Seed/xseed clustering logic

The published method uses the following concepts:

1. Group sequences with identical seed regions.
2. Compare the sequence outside the seed.
3. Treat candidates with identical seed, no more than two xseed changes, and genomic positions within two nucleotides as one novel miRNA; merge their counts.
4. Treat identical-seed candidates at different loci as paralogue candidates.
5. Associate a novel candidate with a known family when it shares the known miRNA seed but maps to a different locus.

flowchart TD
    A["Candidate sequences"] --> B{"Identical seed?"}
    B -->|No| C["Separate candidates"]
    B -->|Yes| D{"xseed difference ≤2 nt?"}
    D -->|No| C
    D -->|Yes| E{"Genomic positions within 2 nt?"}
    E -->|Yes| F["Merge as one candidate"]
    E -->|No| G["Report paralogue relationship"]

These operational rules are useful for reproducibility, but “same seed” does not by itself prove identical biological function. Target context, arm selection, expression, localization, and experimental validation still matter.

Differential-expression model

The supplied scripts/norm_diff_exp.R uses:

design = ~ condition
contrast = c("condition", "treated", "untreated")

It applies the Benjamini–Hochberg procedure and selects features with adjusted p-value ≤ 0.05. The script does not include batch, age, sex, paired design, repeated measures, surrogate variables, or fold-change shrinkage.

For complex studies, use the exported raw-count matrix with an appropriate design, for example:

design = ~ batch + sex + age + condition

The exact model must follow the experimental design; the example is not universally appropriate. Also consider low-count prefiltering, independent filtering, effect-size thresholds, unwanted-variation diagnostics, and shrinkage of log2 fold changes.

Scaling to cohorts and HPC

miRPipe batches samples and runs miRDeep* work in Python threads, while the piRNA branch runs concurrently. This can accelerate multi-sample processing, but resource control is implemented inside a notebook rather than through a scheduler-aware workflow engine.

For an HPC deployment:

• run one container image identified by immutable digest;
• allocate memory per concurrent miRDeep* task;
• avoid oversubscribing CPUs inside a SLURM allocation;
• separate temporary and permanent storage;
• retain per-sample logs and exit codes;
• use a manifest rather than depending on directory glob order; and
• consider refactoring stages into Nextflow, Snakemake, or CWL while preserving miRPipe’s re-annotation and clustering logic.

Minimum QC report for a publication

Report at least:

• samples received, excluded, and analyzed;
• reads before and after adapter/quality filtering;
• read-length distribution;
• fraction assigned to miRNA, piRNA, other small RNA, and unmapped;
• mapping-rate and multi-mapping distribution;
• known versus candidate novel counts;
• number of candidates re-annotated through DASHR;
• number of clusters merged and paralogue groups reported;
• PCA/sample-distance plots from final counts;
• DE model, contrasts, covariates, multiple-testing rule, and effect-size rule; and
• exact software, container, reference, and database versions.

Scientific significance

Methodological significance

miRPipe combines tasks that were often handled separately: known and novel miRNA discovery, piRNA quantification, reverse-complement rescue, seed-based candidate reconciliation, cohort count-matrix construction, and differential expression. Its companion simulator, miRSim, provides ground truth for measuring false positives and false negatives.

Biological significance

Small RNAs regulate gene expression and may reflect disease mechanisms, cell states, or treatment responses. Reliable classification matters because an incorrect label or duplicated count can redirect downstream target prediction, enrichment, biomarker selection, and experimental validation.

Reproducibility significance

Containerization and a notebook lower the installation barrier and make the intended analysis visible. The design was especially valuable for users who needed an integrated workflow in 2022. A modern refresh should retain that accessibility while adding immutable images, command-line configuration, automated tests, and scheduler-aware execution.

Applications

miRPipe can support:

• exploratory small-RNA profiling in cancer and other diseases;
• identification of known and candidate novel miRNAs;
• cohort-level differential-expression analysis;
• piRNA quantification from compatible small-RNA libraries;
• paralogue-aware review of miRNA candidates;
• re-evaluation of candidates affected by reverse-complement labeling;
• benchmarking of small-RNA pipelines using miRSim ground truth;
• method development and sensitivity analysis; and
• non-human analyses after validated replacement of the genome and annotation resources.

It should not be presented as a clinical diagnostic system without independent analytical validation, biological validation, version-controlled references, quality-management procedures, and appropriate regulatory review.

Published benchmark

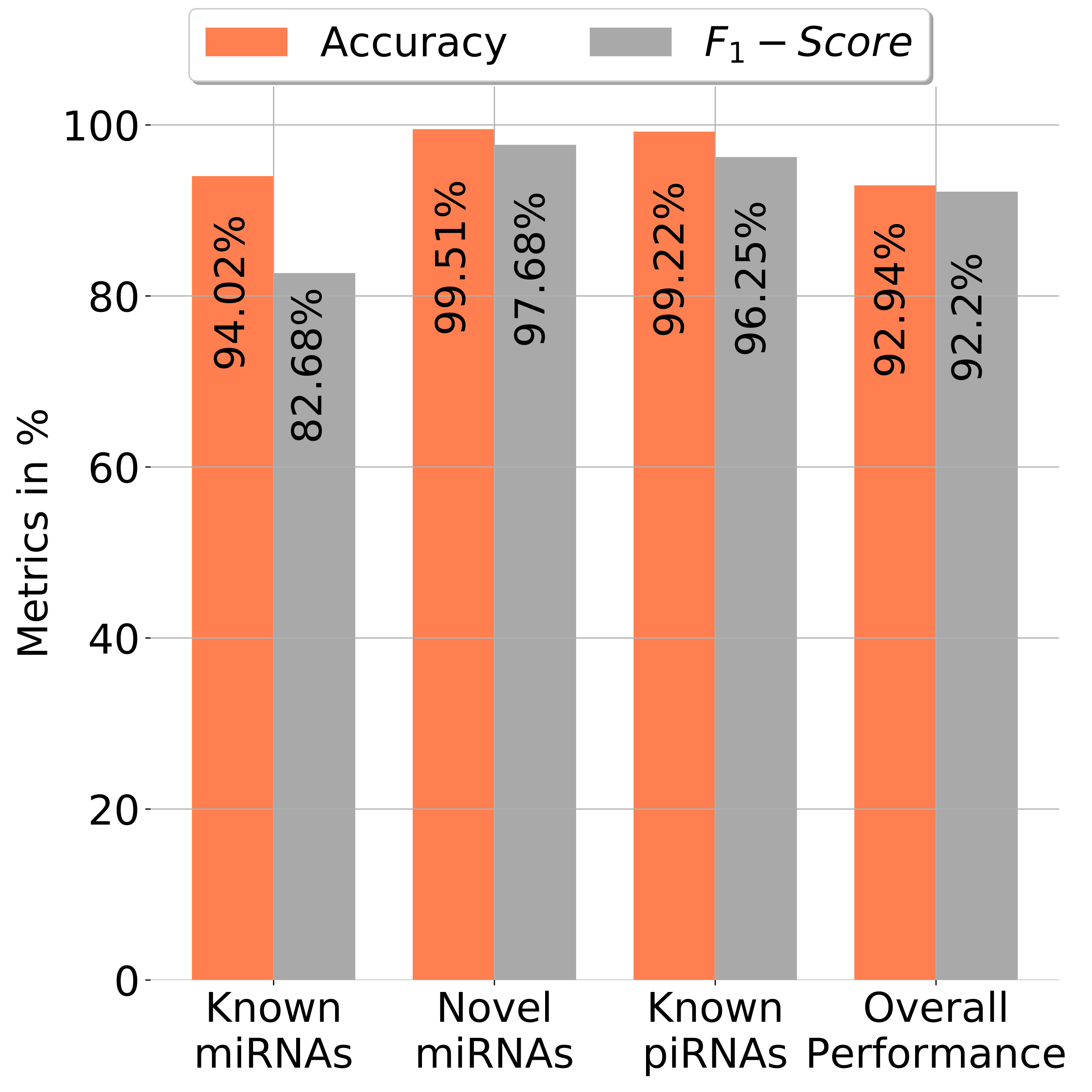

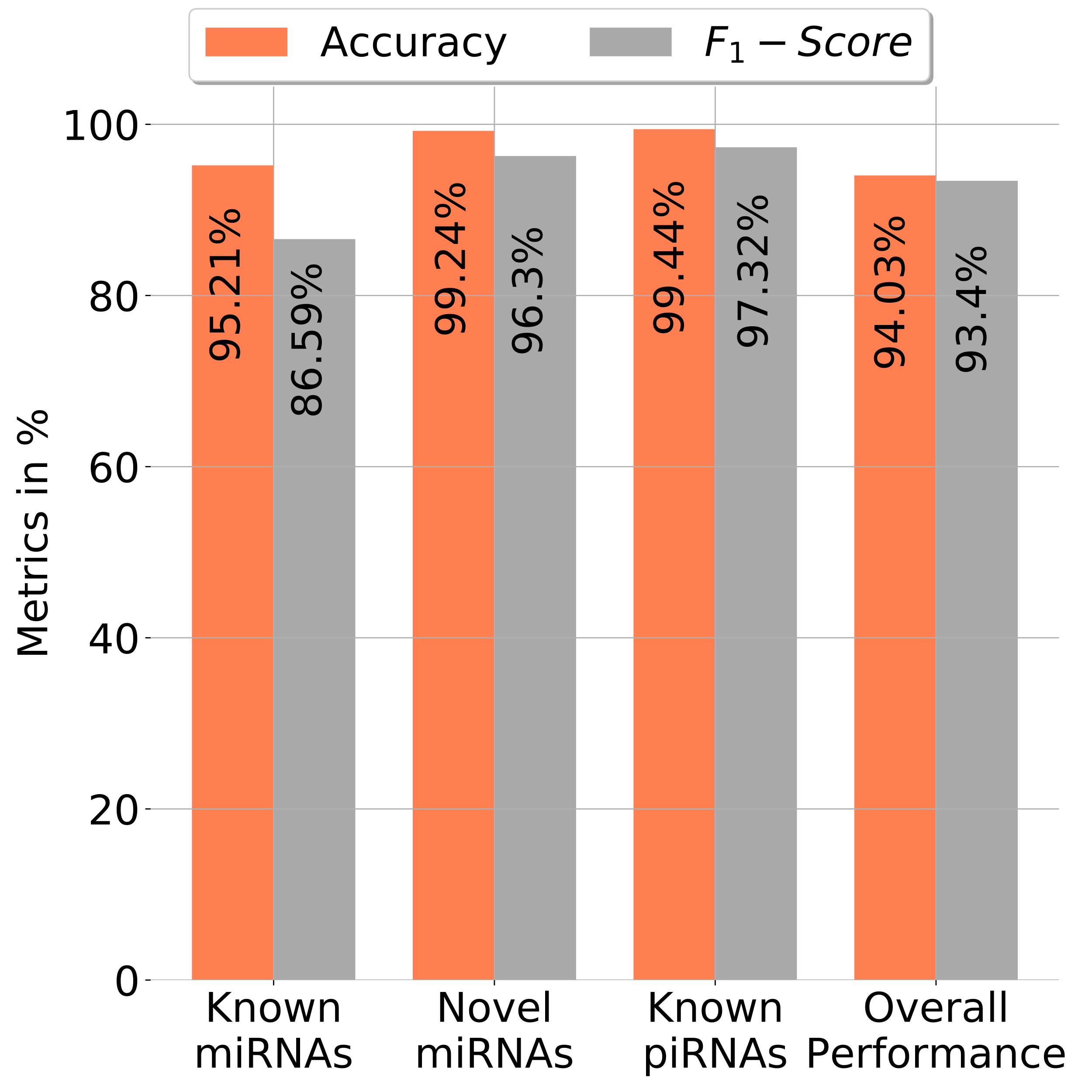

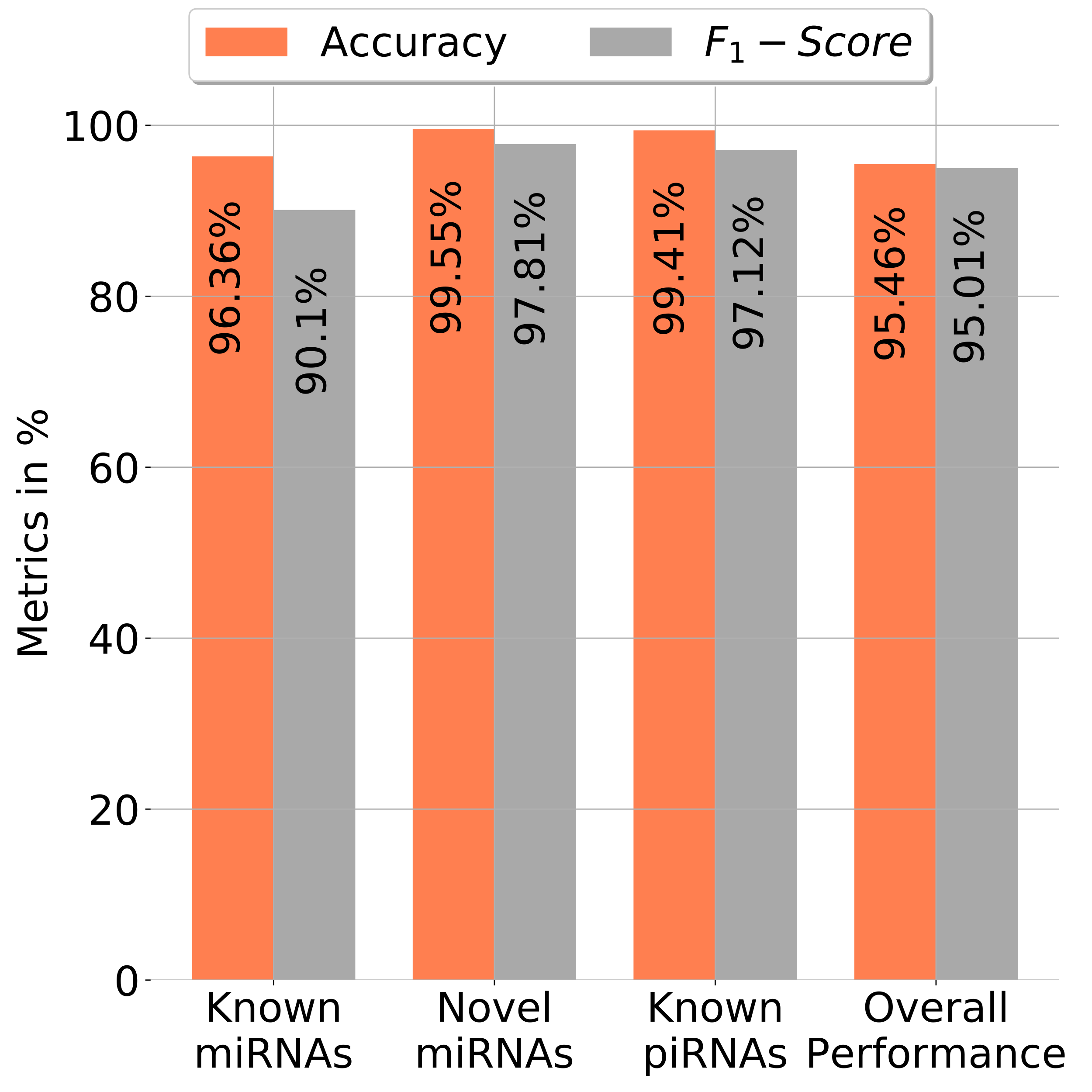

The 2022 article compared miRPipe with seven pipelines using miRSim synthetic data at 50,000, 100,000, and 1,000,000 reads. The following values reproduce the averages reported in Table 2 of the paper.

The reported overall average was approximately 95.22% accuracy and 94.17% F1 across RNA types and depths. The abstract reports 95.23% for accuracy, a small rounding/reporting difference.

50K reads	0.1M reads	1M reads

Comparison with other pipelines

The table below is a capability-oriented current-use guide, not a new head-to-head performance benchmark.

Practical selection guide

• Choose miRPipe when the scientific question specifically needs the published reverse-complement, seed/xseed, paralogue, and joint miRNA/piRNA logic.
• Choose nf-core/smrnaseq when production-grade portability, automated testing, provenance, HPC execution, and broad QC are the primary needs.
• Choose miRge3.0 when UMI, isomiR, tRF, or A-to-I editing analysis is central.
• Choose sRNAtoolbox/sRNAbench for broad small-RNA profiling, web access, Docker deployment, or non-model organisms.
• Choose miRDeep2 for a focused and widely recognized known/novel miRNA discovery workflow.

For a new methods paper, benchmark multiple tools under the same inputs, reference versions, compute limits, parameter-tuning policy, and independent ground truth.

Troubleshooting

Citation

If miRPipe is used, cite:

Ruhela V, Gupta A, Sriram K, Ahuja G, Kaur G, Gupta R. A Unified Computational Framework for a Robust, Reliable, and Reproducible Identification of Novel miRNAs From the RNA Sequencing Data. Frontiers in Bioinformatics. 2022;2:842051. https://doi.org/10.3389/fbinf.2022.842051

BibTeX:

@article{ruhela2022mirpipe,
  title   = {A Unified Computational Framework for a Robust, Reliable, and Reproducible Identification of Novel miRNAs From the RNA Sequencing Data},
  author  = {Ruhela, Vivek and Gupta, Anubha and Sriram, K. and Ahuja, Gaurav and Kaur, Gurvinder and Gupta, Ritu},
  journal = {Frontiers in Bioinformatics},
  volume  = {2},
  pages   = {842051},
  year    = {2022},
  doi     = {10.3389/fbinf.2022.842051}
}
